First ODE Fit

This tutorial demonstrates how to fit ordinary differential equations (ODEs) to data using Diffid's DiffSL integration with the Diffsol solver.

The Problem: Logistic Growth

We'll fit a logistic growth model to synthetic population data. The logistic growth equation is:

\[\frac{dy}{dt} = r \cdot y \cdot \left(1 - \frac{y}{k}\right)\]

where: \(r\) is the growth rate, \(k\) is the carrying capacity, and \(y\) is the population.

Complete Example

import numpy as np
import diffid as chron

# Define the ODE model in DiffSL syntax
dsl = """
in_i { r = 1, k = 1 }
u_i { y = 0.1 }
F_i { (r * y) * (1 - (y / k)) }
"""

# Generate synthetic data from the logistic model with noise
from scipy.integrate import odeint

def logistic(y, t, r, k):
    return r * y * (1 - y / k)

t = np.linspace(0.0, 10.0, 51)
y_true = odeint(logistic, 0.1, t, args=(0.8, 2.0)).flatten()  # True: r=0.8, k=2.0
np.random.seed(42)
observations = y_true + 0.05 * np.random.randn(len(t))
data = np.column_stack((t, observations))

# Build the problem
builder = (
    diffid.DiffsolBuilder()
    .with_diffsl(dsl)
    .with_data(data)
    .with_parameter("r", 0.5)  # Initial guess for growth rate
    .with_parameter("k", 1.0)  # Initial guess for carrying capacity
    .with_backend("dense")
)
problem = builder.build()

# Run optimisation with CMA-ES
optimiser = diffid.CMAES().with_max_iter(1000)
result = optimiser.run(problem, [0.5, 1.0])

# Display results
print(f"Fitted parameters:")
print(f"  r (growth rate) = {result.x[0]:.4f}")
print(f"  k (capacity) = {result.x[1]:.4f}")
print(f"Objective value: {result.value:.3e}")
print(f"Success: {result.success}")

Understanding DiffSL Syntax

DiffSL is a domain-specific language for defining differential equations. Let's break down the syntax:

in_i { r = 1, k = 1 }            # Input parameter tensor with defaults
u_i { y = 0.1 }                  # Initial conditions
F_i { (r * y) * (1 - (y / k)) }  # Right-hand side of dy/dt = ...

Data Format

Diffid expects data as a 2D NumPy array where:

  • First column: Time points
  • Remaining columns: Observed values for each variable
# Example: 51 time points, 1 state variable
t = np.linspace(0.0, 10.0, 51)
observations = ...  # Your observed data
data = np.column_stack((t, observations))  # Shape: (51, 2)

For multi-variable systems:

# Example: 2 state variables
data = np.column_stack((t, obs_var1, obs_var2))  # Shape: (n, 3)

Visualising Results

import matplotlib.pyplot as plt

# Generate fitted curve using optimised parameters
t_dense = np.linspace(0.0, 10.0, 200)
y_fitted = odeint(logistic, 0.1, t_dense, args=(result.x[0], result.x[1])).flatten()

# Plot
plt.figure(figsize=(10, 6))
plt.plot(data[:, 0], data[:, 1], 'o', label='Observed data', alpha=0.6)
plt.plot(t_dense, y_fitted, '-', label='Fitted model', linewidth=2)
plt.xlabel('Time')
plt.ylabel('y')
plt.title('Logistic Growth Model Fit')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

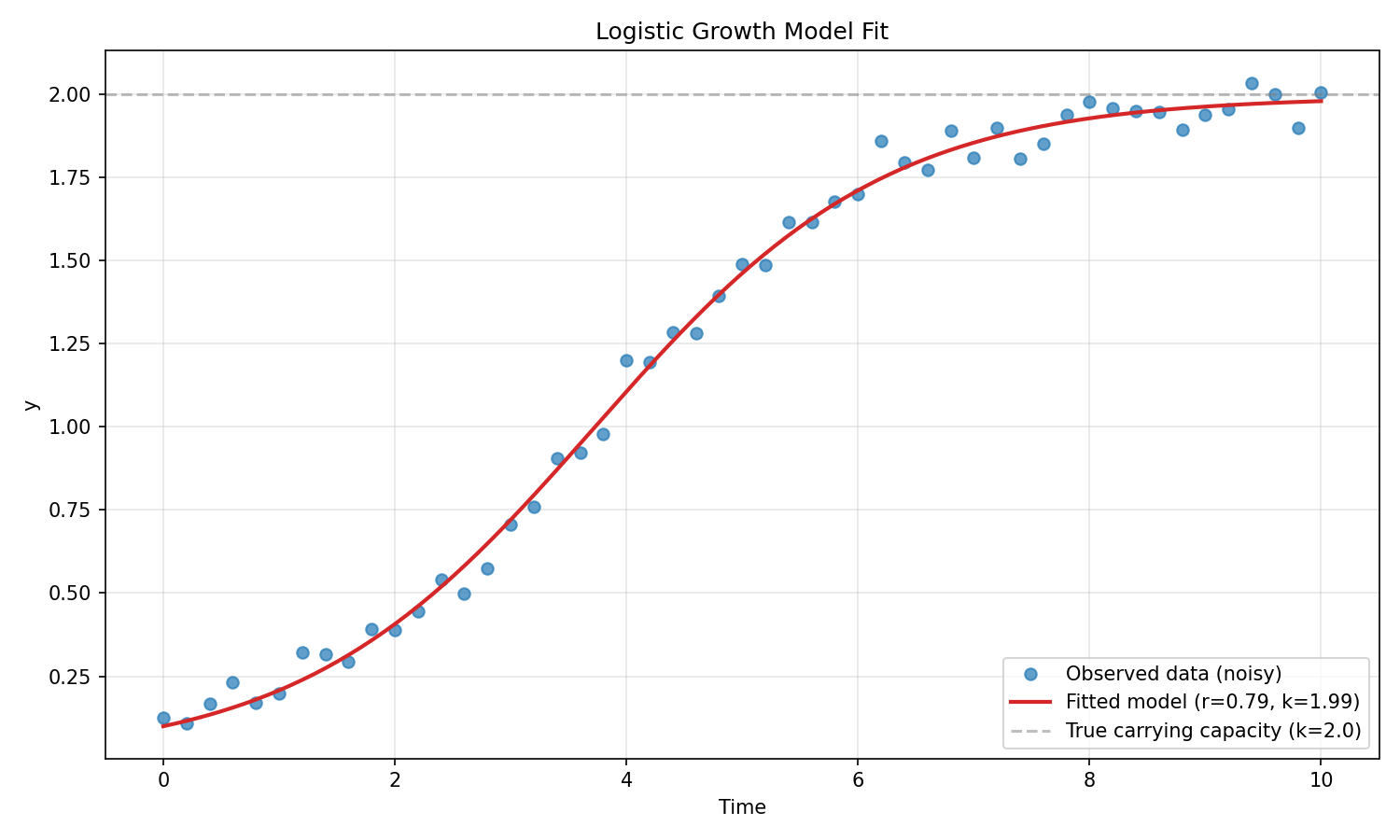

Logistic growth model fit

Common ODE Patterns

Multiple State Variables

dsl = """
in_i { alpha = 1, beta = 1 }
u_i {
    x = 1.0
    y = 0.5
}
F_i {
    alpha * x - beta * x * y,
    -beta * y + alpha * x * y
}
out_i { x, y }
"""

With Algebraic Variables

dsl = """
in_i {k1 = 1, k2 = 1 }
u_i { A = 1.0 }
dudt_i { -k1 * A }
F_i {
    -k1 * A,
    k1 * A - k2 * B
}
out_i { A, B }
"""

Time-Dependent Forcing

dsl = """
in_i { k = 1 }
u_i { y = 0.0 }
F_i { k * sin(t) - y }
"""

Cost Metrics

By default, Diffid uses sum of squared errors (SSE). You can specify different cost metrics as shown below. See the Cost Metrics Guide for more details.

from diffid import GaussianNLL, RMSE

# Use Gaussian negative log-likelihood
builder = (
    diffid.DiffsolBuilder()
    .with_diffsl(dsl)
    .with_data(data)
    .with_parameter("k", 1.0)
    .with_cost_metric(GaussianNLL())  # For probabilistic inference
)

# Or use root mean squared error
builder = builder.with_cost_metric(RMSE())  # Normalised by number of points

Optimiser Selection

Different optimisers work better for different problems. For a detailed comparison, see Choosing an Optimiser.

Nelder-Mead (Default)

result = problem.optimise()  # Uses Nelder-Mead

Best for: Small problems (< 10 parameters), noisy objectives

CMA-ES

optimiser = diffid.CMAES().with_max_iter(1000).with_step_size(0.5)
result = optimiser.run(problem, initial_guess)

Best for: Global optimisation, 10-100 parameters, parallelisable

Adam

optimiser = diffid.Adam().with_max_iter(1000).with_step_size(0.01)
result = optimiser.run(problem, initial_guess)

Best for: Smooth problems, fast convergence on well-behaved objectives

Troubleshooting

Poor Fit Quality

  1. Check initial conditions: Ensure they're physically reasonable
  2. Try different optimisers: CMA-ES is often more robust than Nelder-Mead
  3. Increase iterations: Use .with_max_iter(10000)
  4. Check data scale: Normalise data if variables have very different magnitudes

Solver Errors

  1. Stiff equations: Try changing the solver tolerance
  2. Numerical instability: Check for divide-by-zero or exp overflow in your ODE
  3. Backend mismatch: Try switching between dense and sparse

For more help, see the Troubleshooting Guide.
